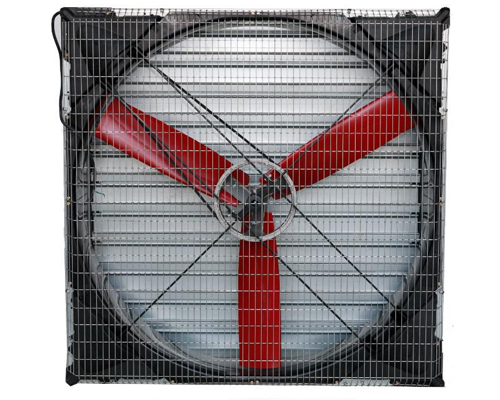

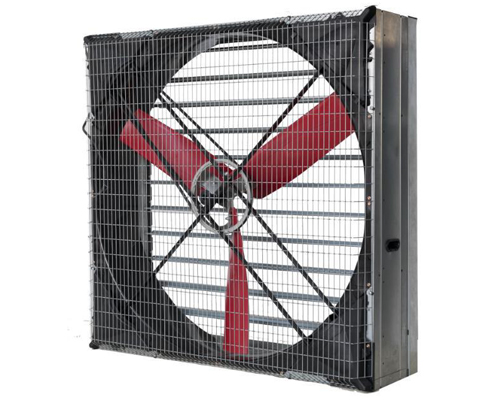

ZEN-MULTIPLY-FAN

  • Home
  • Industrial Exhaust Fan
  • ZEN-MULTIPLY-FAN

Technical Specification

  • Size: 1380 x1380x450mm
  • Air flow: 46100 cbm/h
  • Motor: 1.1kw, 380v, three phase, class F,ip 55
  • Motor Rpm: 1440 r/min
  • Blade Size: 1270mm, Nylon mixed 30% FRP
  • Blade Rpm : 600
  • Belt: Mitsuboshi / PIX
  • Frame: 1.0 mm 275g/sqm hot galvanizes iron
1
2
3

ZEN- SAVING ENERGY BOX FAN

  • Effective fan with a very large diameter
  • High air performance with low energy consumption

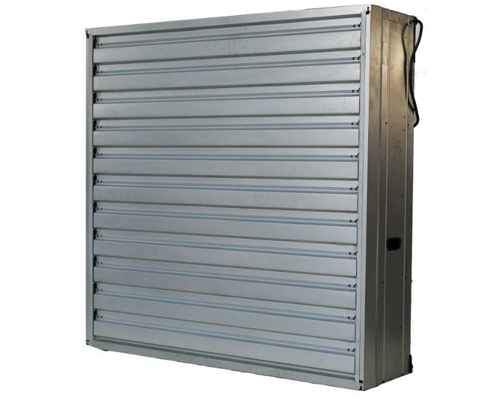

  • Shutter opens by means of air flow and stays open thanks to counterweights ,minimal air resistance
  • Motor Without cooling fan, very low maintenance.
  • Stable construction with high –grade ,coated and corrosion resistant parts
  • Proven reliability ,high efficiency and applicable in the most extreme circumstances

PERFORMANCES

Model Dia. Blade No.s Blade Power Air flow m3/h Out size /mm
        0 pa 25 pa 50 pa
ZEN-1380 1280 mm 3 1.1 kw 41000 36400 30500 1380 x 1380 x 437
