ZEN-HVLS FANS

ZEN-HVLS FANS

*HVLS FAN is a high-volume ,low speed ceiling fan greater than traditional industrial fan .

*Using large diameter blades to moves a lots of air from all directions to the ground .Forming a air Layer from the ground ,then
move horizontal to all around ,facilitating the air circulation Of the whole space.The large coverage area ,low speed ,low energy
strong wind ,Increased air circulation replaces hot ,humid air ,create a convective ,nature ,comfortable wind .

APPLICATION CASE :
HVLS ceiling fans are used in large facilities, warehouses, distribution centers, farms, large retail stores, sports areas, stations, airports and other large buildings, become a ideal choice for ventilation, cooling and dehumidification of large indoor place.

HVLS FANS MODEL/ TECHNICAL DETAILS :

SR.NO.
MODEL
POWER (kW)
DIAMETER (m/ft)
NO. OF BLADES
RPM
AIRFLOW (m3/min)
WEIGHT (Kg)
COVER AREA (m2)
COVER AREA (sqft)
Color
1.
ZEN-WHIRL-8FT
0.2
3.0m/8ft
5
120
3200
45
180
1938
Standard
2.
ZEN-CYCLONE-10FT
0.4
3.5m/8ft
5
105
3600
50
200
2153
Standard
3.
ZEN-BREEZE- 12FT
1
3.6m/8ft
5
100
4000
60
300
3230
Yellow
4.
ZEN-STYLE-12FT
1.2
4.2m/8ft
6
90
5000
75
500
5382
Black
5.
ZEN-MASTER-14FT
1.2
5.1m/8ft
6
80
6200
92
600
6459
Black
6.
ZEN-GALE-14FT
1.2
5.1m/8ft
6
80
6200
92
600
6459
Standard
7.
ZEN-STORM-18FT
0.8
5.2m/8ft
6
70
7800
110
700
7535
Standard
8.
ZEN-BREEZE-17FT
0.9
5.5m/8ft
6
65
7500
110
700
7535
Black
9.
ZEN-INFINITY-21FT
1.3
6.1m/8ft
6
65
9200
120
850
9150
Black
10.
ZEN-ZEPHYR-20FT
1
6.2m/8ft
6
65
9800
120
800
8612
Standard
11.
ZEN-DYNAMIC-24FT
1.5
7.3m/8ft
6
60
10800
125
1086
11688
Black
12.
ZEN-BLAZE-24FT
1.5
7.3m/8ft
6
60
10800
125
1086
11688
Standard

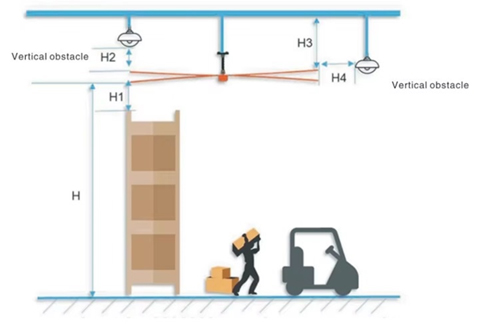

Diagram Installation
