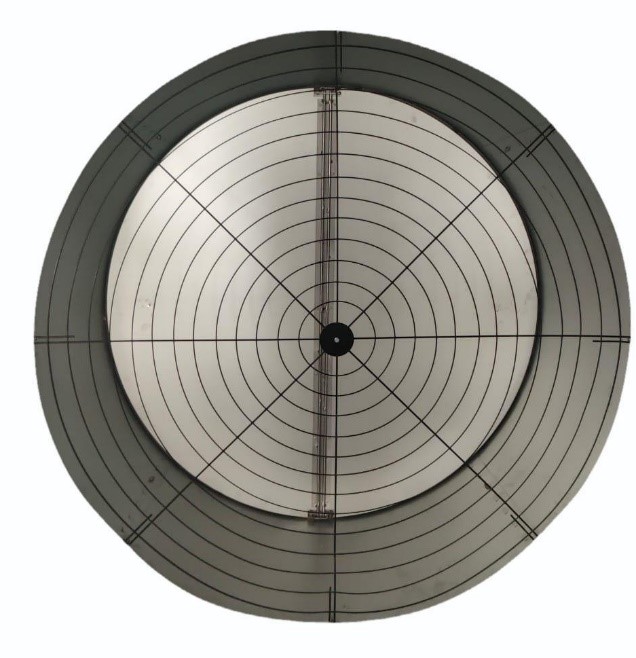

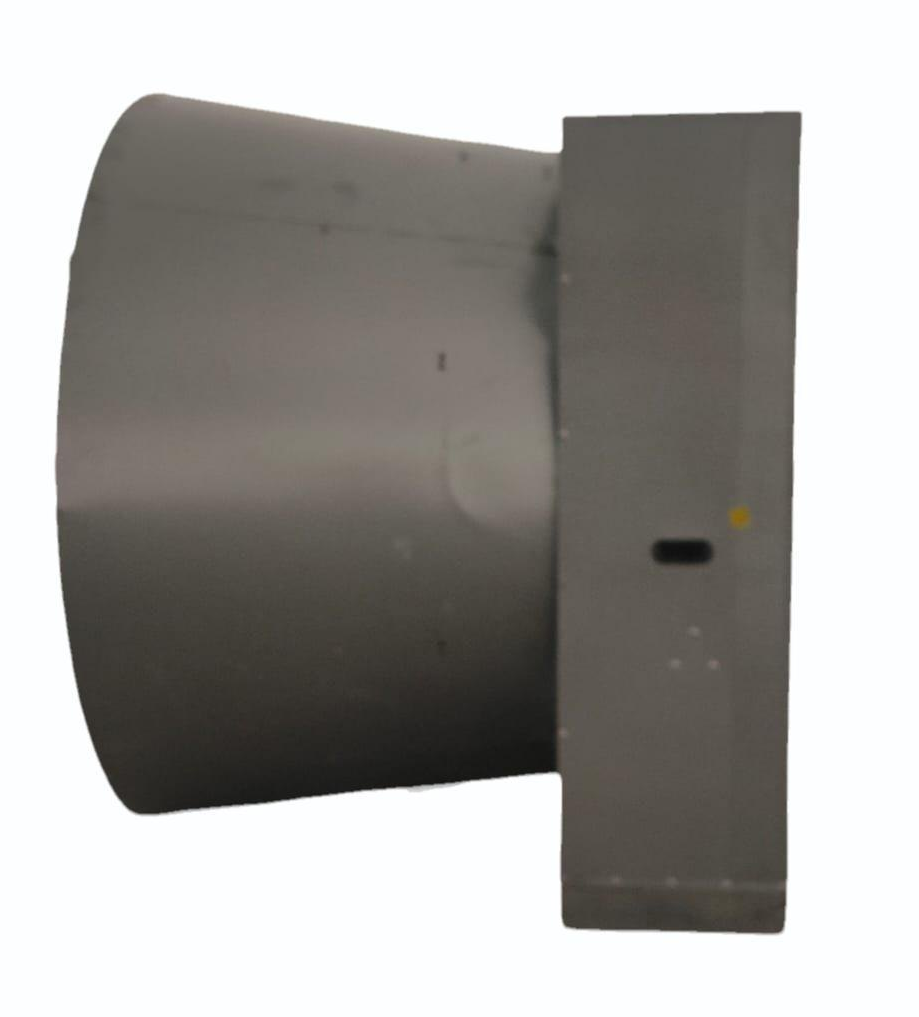

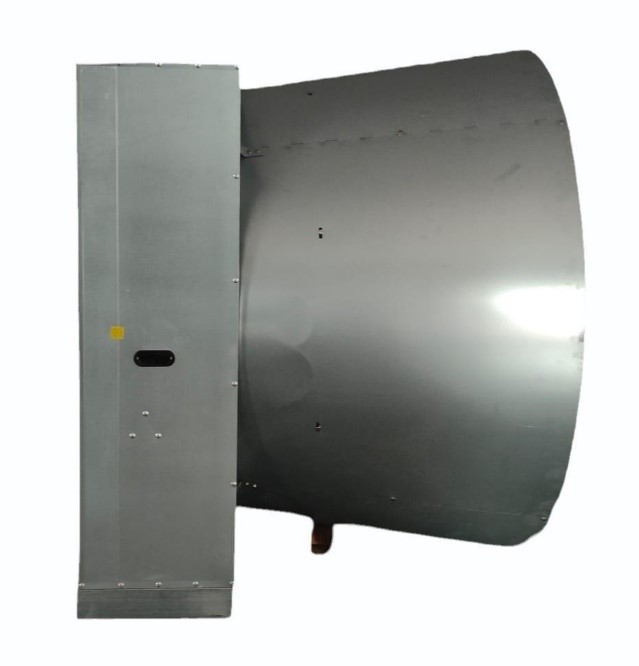

BUTTERFLY CONE FAN EXHAUST FAN
| Size: | 1380 x1380 x1300mm |
| Air flow: | 51000 cbm/h |
| Motor: | 1.1kw, 380v, IP 55, f 100% copper wire three phase |
| Blade Diameter: | 1270mm |
| Up frame: | 1.00mm & cone 0.7mm, zinc coating 275g/m2 |
| Shutter: | galvanize steel, 0.40-0.45mm |
| Wind collector: | galvanize 0.8mm |
| Belt: | type b, big pulley, motor board, belt tensioner |
